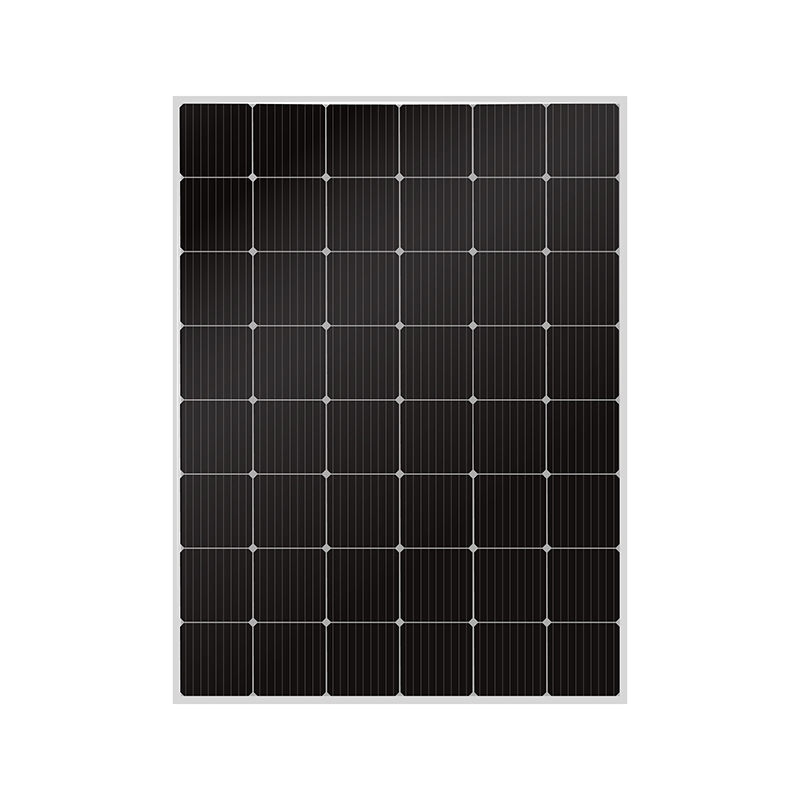

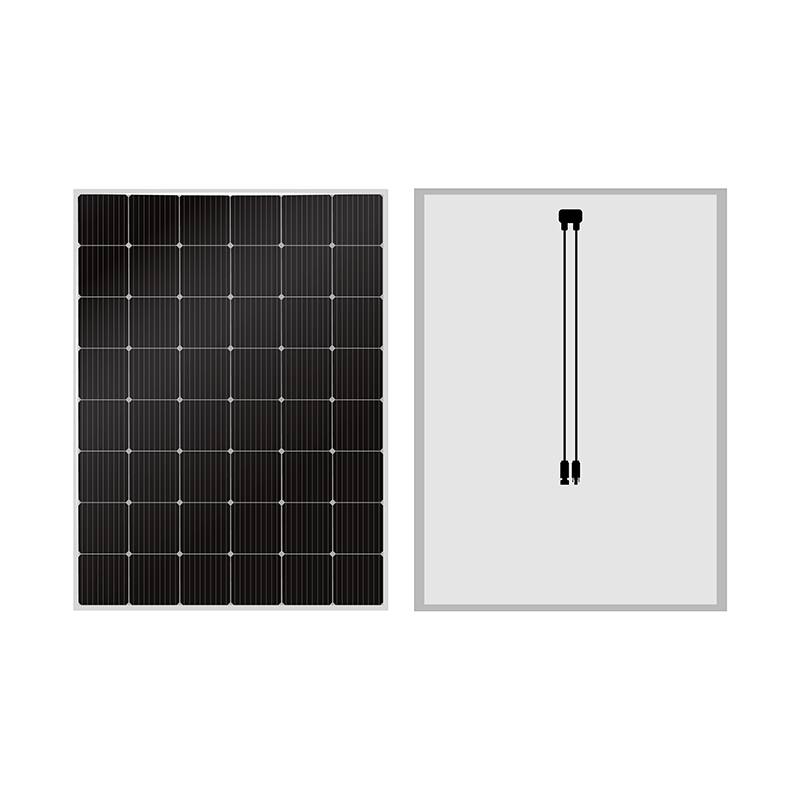

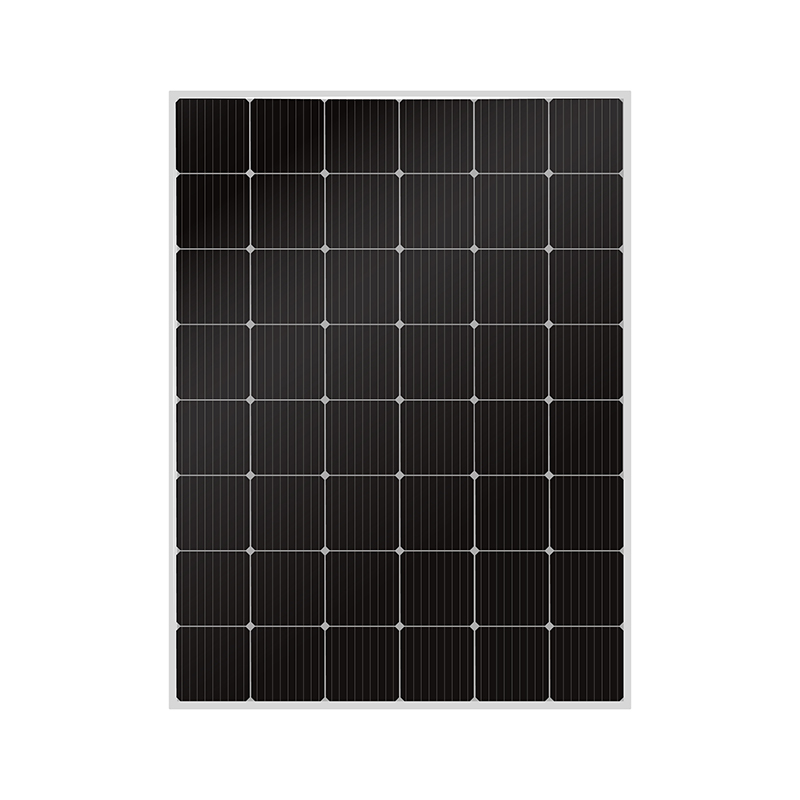

Cell Type: Monocrystalline
Number of cells:48
Module efficiency:≥19.4%
Maximum system voltage:1500V DC
Maximum fuse rated current:20A
Frame: Anodized aluminum alloy
Glass: 3.2mm tempered glass
Junction box: IP65/IP67
Connectors: MC4 compatible
| Product Code | LK-48M-280W280W | LK-48M-285W285W | LK-48M-290W290W | LK-48M-295W295W | LK-48M-300W300W |
|---|---|---|---|---|---|
| Rated Maximum Power at STC(w) STC(w) | 280 | 285 | 290 | 295 | 300 |
| Open Circuit Voltage(VOC/v) Voc/v | 30.6 | 30.9 | 31.2 | 31.5 | 31.8 |
| Maximum Power Voltage(Vmp/V) Vmp/V | 26.4 | 26.7 | 27.0 | 27.3 | 27.6 |
| Short Circuit Current(Isc/A)Isc/A | 11.73 | 11.79 | 11.87 | 11.95 | 12.02 |
| Maximum Power Current(imp/A)imp/A | 10.61 | 10.67 | 10.74 | 10.81 | 10.87 |
| Dimension(mm)Dim.(mm) | 1390*1038*35 | ||||
| Weight(kg)Weight(kg) | 16 | ||||
| Power Tolerance | ±3% tolerance | ||||
| α ISC | -0.05%/°C | ||||
| β Voc | -0.29%/°C | ||||
| γ Pmp | -0.4%/°C | ||||
| STC (Standard test conditions) | AM1.5, 1000W/m², 25±2°C | ||||
| Remarks: | model is LK- 48M- () | ||||
