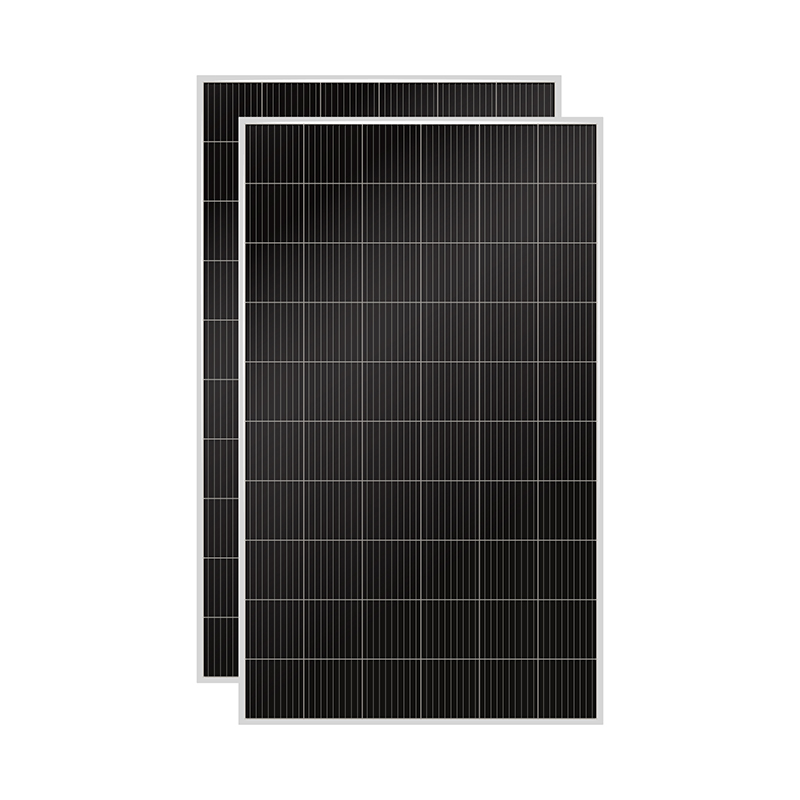

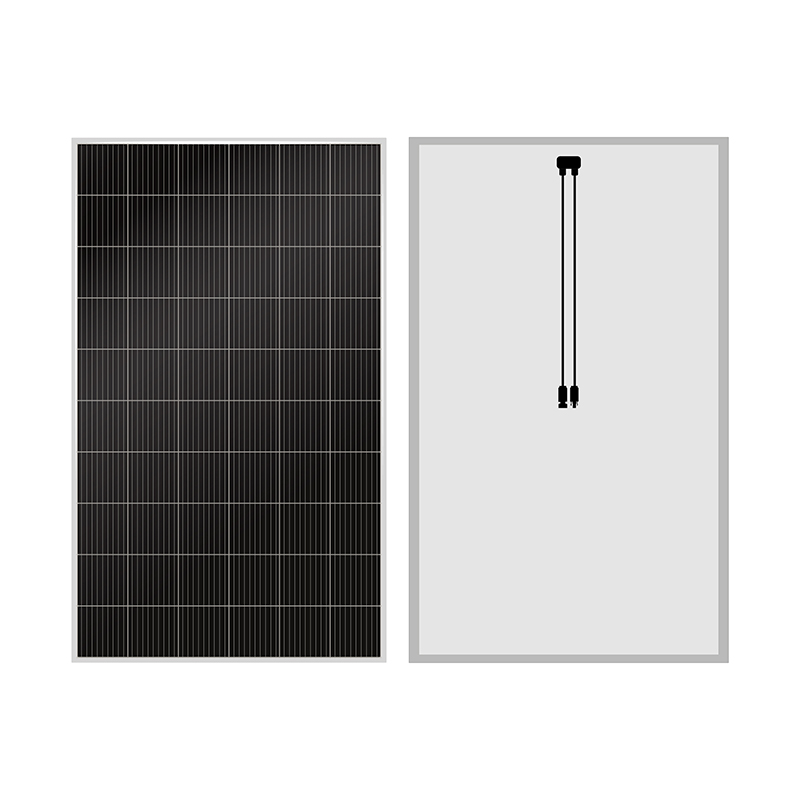

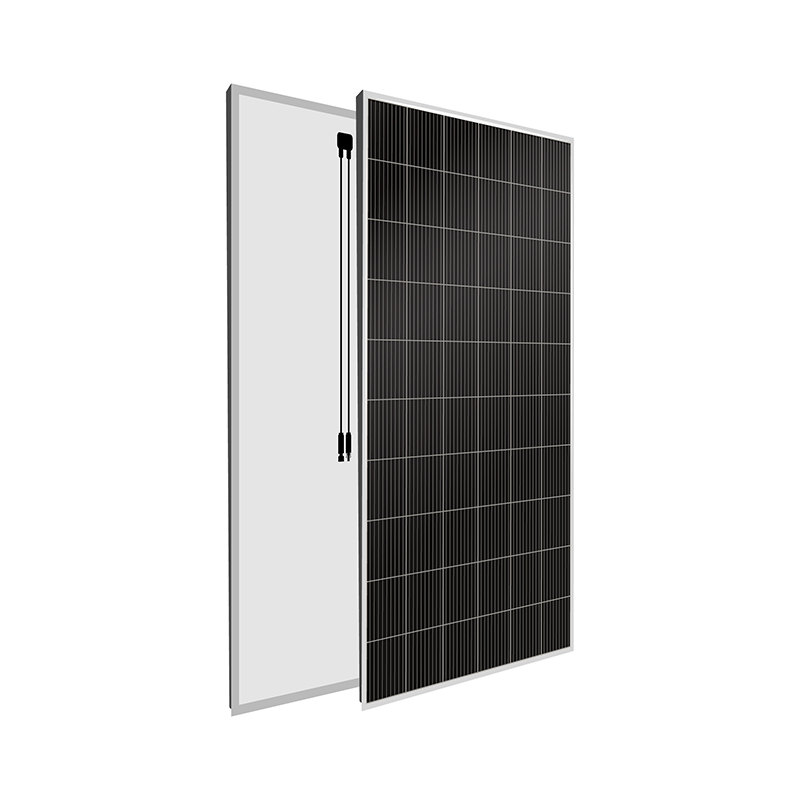

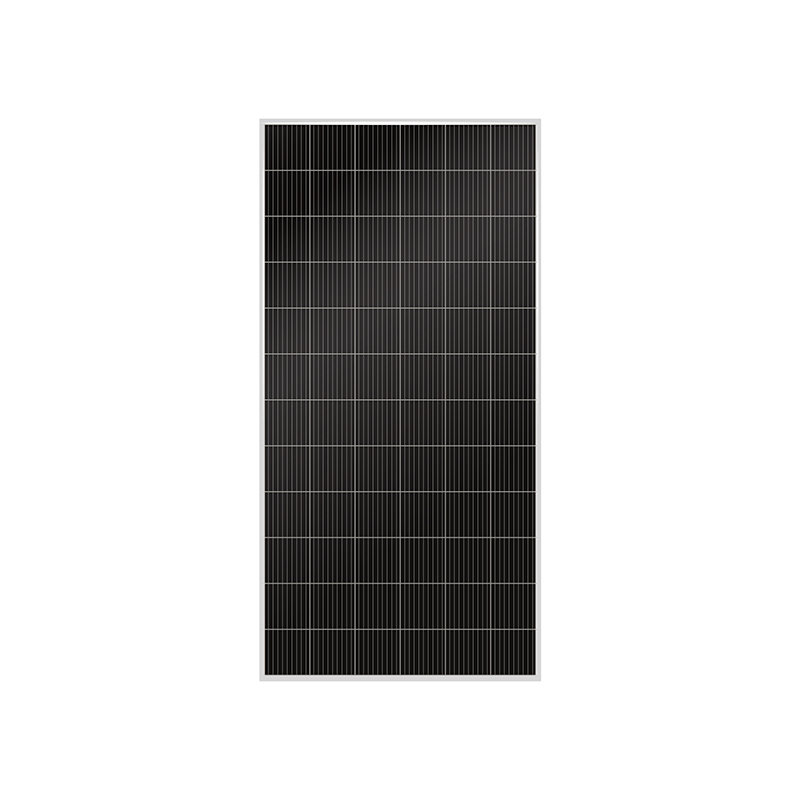

Cell Type: Monocrystalline
Number of cells:60
Module efficiency:≥19.2%
Maximum system voltage:1500V DC
Maximum fuse rated current:20A
Frame: Anodized aluminum alloy
Glass: 3.2mm tempered glass
Junction box: IP65/IP67
Connectors: MC4 compatible
| Product Code | LK-60M-320W320W | LK-60M-330W330W | LK-60M-335W335W | LK-60M-340W340W | LK-60M-345W345W | LK-60M-350W350W |
|---|---|---|---|---|---|---|
| Rated Maximum Power at STC(w) STC(w) | 320 | 330 | 335 | 340 | 345 | 350 |
| Open Circuit Voltage(VOC/v) Voc/v | 39.9 | 40.3 | 40.5 | 40.7 | 41.1 | 41.1 |
| Maximum Power Voltage(Vmp/V) Vmp/V | 32.4 | 32.8 | 33.0 | 33.2 | 33.6 | 33.6 |
| Short Circuit Current(Isc/A)Isc/A | 10.15 | 10.37 | 10.47 | 10.57 | 10.63 | 10.78 |
| Maximum Power Current(imp/A)imp/A | 9.88 | 10.06 | 10.15 | 10.24 | 10.27 | 10.42 |
| Dimension(mm)Dim.(mm) | 1650*996*35 | |||||
| Weight(kg)Weight(kg) | 17.5 | |||||
| Power tolerance | ±3% tolerance | |||||
| α ISC | -0.05%/°C | |||||
| β Voc | -0.29%/°C | |||||
| γ Pmp | -0.4%/°C | |||||
| STC (Standard test conditions) | AM1.5, 1000W/m², 25±2°C | |||||
| Remarks: | model is LK- 60M- () | |||||

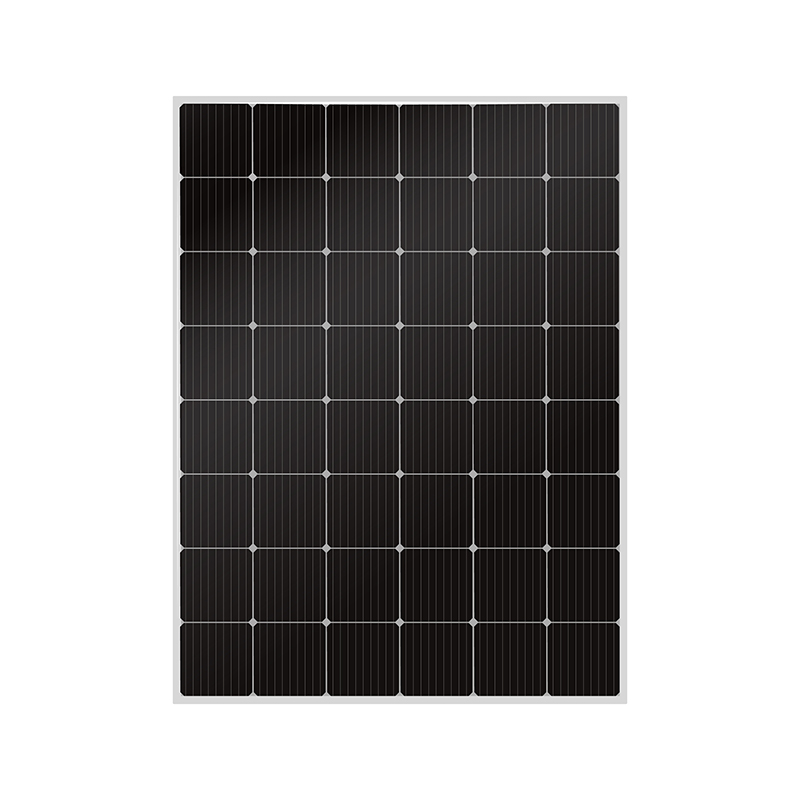

Full-cell Mono 150-210W Solar panel
